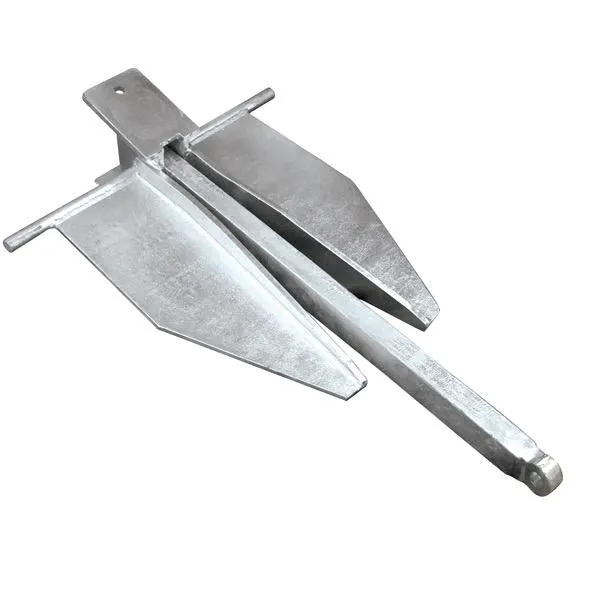

Suitable for sand and mud bottoms.

Fitted with a retrieval eye for easy removal if snagged.

Due to the tilting shaft the anchor is able to be stored flat.

Hot dipped heavy-duty galvanised.

Other Details:

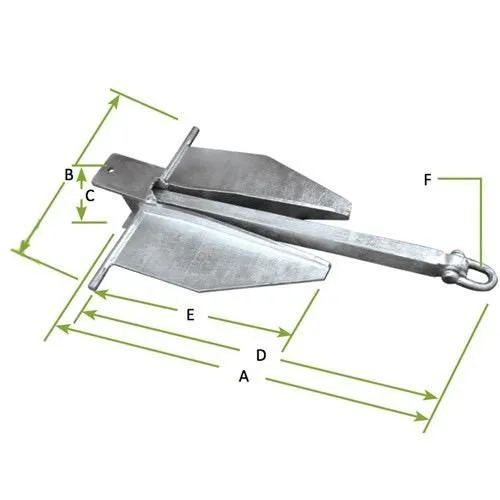

Part No.	Weight		Length (A) (mm)	Width (B) (mm)	Depth (C) (mm)	Shank (D) (mm)	Fluke (E) (mm)
	(kg)	(lb)
12191	27	60	950	650	235	800	440
12193	36	80	930	590	230	800	525
12194	45	100	1002	610	230	820	530
12195	54	120	1150	710	240	970	565
12197	73	160	1270	800	270	1070	640
12192	100	220	1560	910	335	1310	779
12196	136	300	1300	755	260	1110	725
