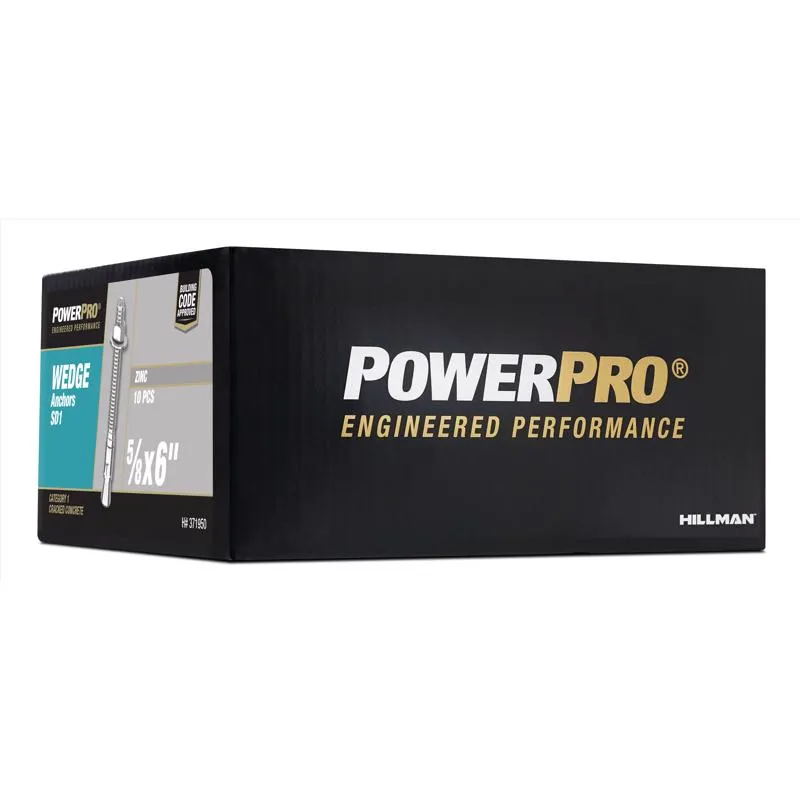

The Power-Stud SD1 is a fully threaded, torque controlled, wedge expansion anchor that is designed for concrete applications. Suitable base materials are normal-weight and sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. This anchor has various DOT approvals including Caltrans listing for "Stud Mechanical Expansion Anchors". Building code approved. *
- Brand Name: HILLMAN
- Diameter: 5/8 in.
- Length: 6 in.
- Material: Steel
- Head Style: Round Head
- Product Type: Wedge Anchor
- Number in Package: 10 pk
- Screw Included: Yes
- Packaging Type: Boxed
- Thread Type: High/Low
- Required Drill Hole Size: 5/8 in.
- Screw Length: 6 in.
- Minimum Embedment: 2-3/4 in.
- Capacity: 2975 lb
- Application: Concrete
